Features
- Regulates tank pressure more efficiently to stove with 75% more BTU capacity (at service tank) than single-stage regulator
- With both tank valves open, regulator automatically changes over to full tank once first seleted tank is empty
- Indicator dome shows orange until selector switch is pushed completely toward full tank; empty tank can then be disconnected for refill
- Meets ABYC standards
Specifications

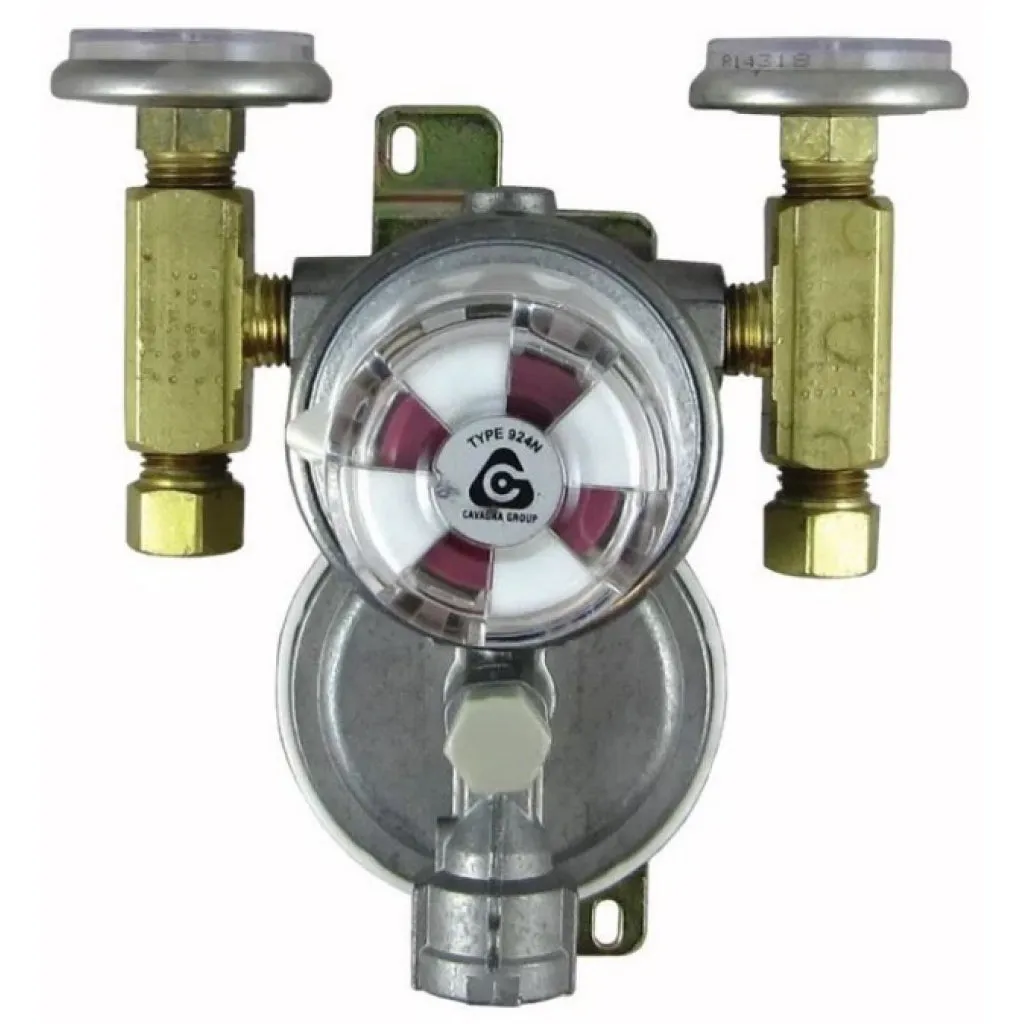

- UL-listed body fully assembled and leak tested with (2) 300 psi gauges, 3/8" FPT outlet and wall mounting brackets
- Connect (2) pigtail hoses between regulator inlets and tanks
- Dimensions: 6-3/4" H x 5-1/4" W x 4"
